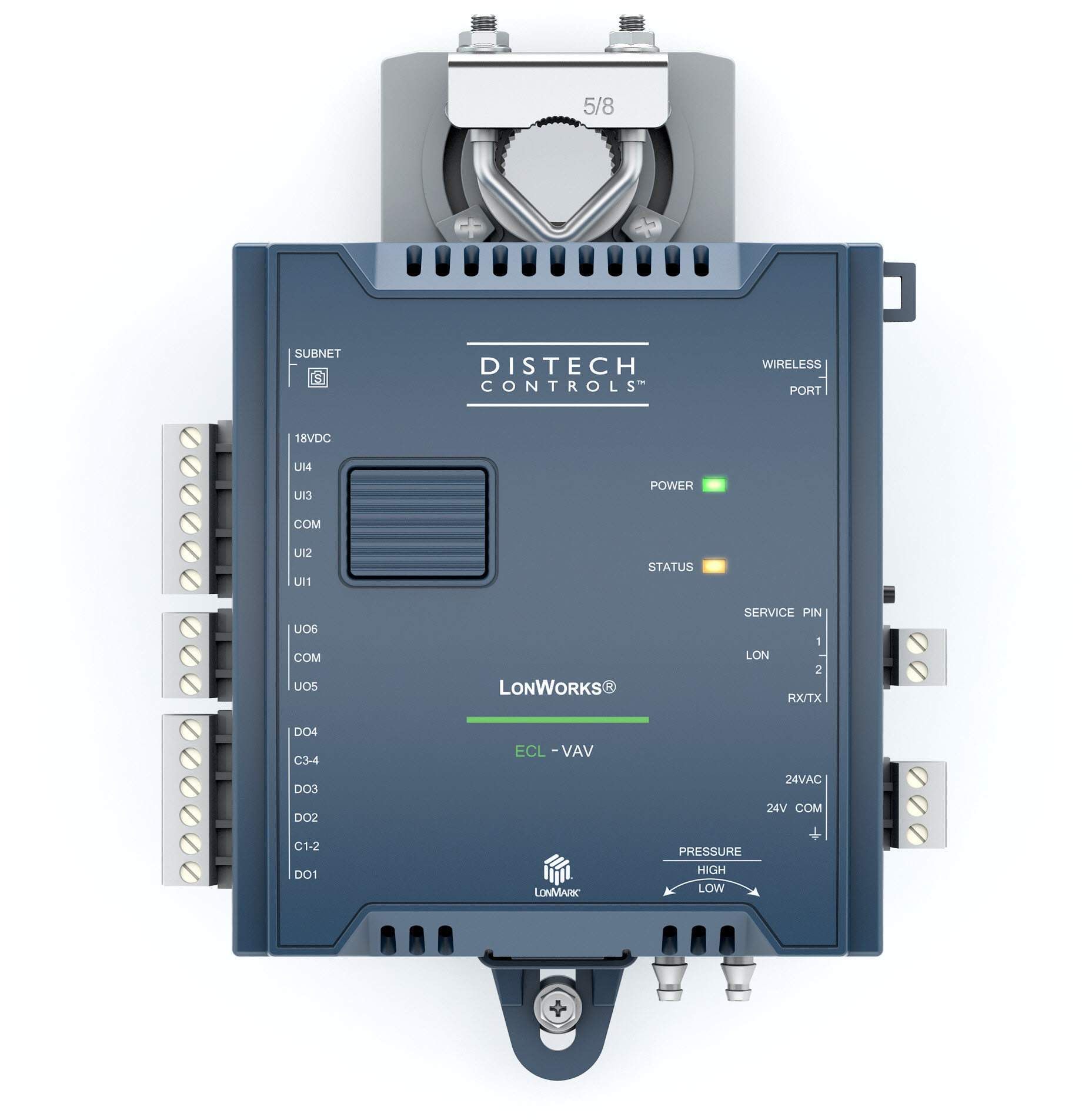

Product Image

ECL-VAV

by Distech Controls

12-point controller ideally suited for cooling only, cooling with reheat, dual-duct, parallel fan and series fan VAV applications

  • Robust and compact design for your VAV applications
    • 4 universal inputs
    • 4 digital outputs (Triac)
    • 2 universal outputs
    • On-board drift-free, polarity-free and NoZero calibration flow sensor reducing air flow balancing time
    • Built-in brushless 45lb-in DC motor actuator with intelligent damper control algorithm for extended actuator lifecycle and fast air flow balancing
  • Configure pre-loaded applications with Allure™ EC-Smart-Vue communicating sensor, EC-gfxProgram Configuration Assistant or dcgfxapplications via EC-Net.
  • Create advanced sequences with EC-gfxProgram, featuring a step-by-step Configuration Assistant to facilitate custom programming, simplify onsite installation and commissioning
  • Perform the entire Variable Air Volume (VAV) air balancing process via your mobile device with myDC AirBalancing
  • Support of up to 4 Allure series communicating sensors
  • Support of the Smart Room Control Solution for unified control of HVAC, lighting, and shades/sunblind
  • Open-to-Wireless™ Solution: support of up to 18 wireless battery-less inputs
  • LONMARK SCC VAV Certified

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ECL-VAV Spec Sheet LONMARK certified 12-Point programmable VAV controller 6/13/2019 View

  • Specifications

    Brand Distech Controls
    Product Type Room Control Solution
    Subcategory LonWorks
    Sales Regions US, OC, ME, EU, CSA, CA, AS
